What is the difference between the standard DigiKey and the "Digi-Reel only" configuration?
The standard Digi-Key configuration will pull prices for all standard packaging types (such as Tape and Reel, Tray, Tube, etc...)
If you would like to be able to also pull the customized Digi-Reel package type, please set up a second DigiKey supplier entry to be specific for Digi-Reel quotes. When you setup up a "Digi-Reel only" Supplier Connect entry, it will only pull the customized Digi-Reel package type quotes and prices. Since Digi-Reel package types incur a $7 fee, each price found will have that amount applied in an amortized fashion.
For example; if a Digi-Reel is being quoted at $0.500 per unit for 1,000 units, then you would see a price presented as $0.507 (because the $7 fee is being spread across 1,000 units).
Supplyframe recommends starting with the standard Digi-Key Supplier Connect setup and then adding Digi-Reel only support as needed.
Part I: Obtaining the Credentials

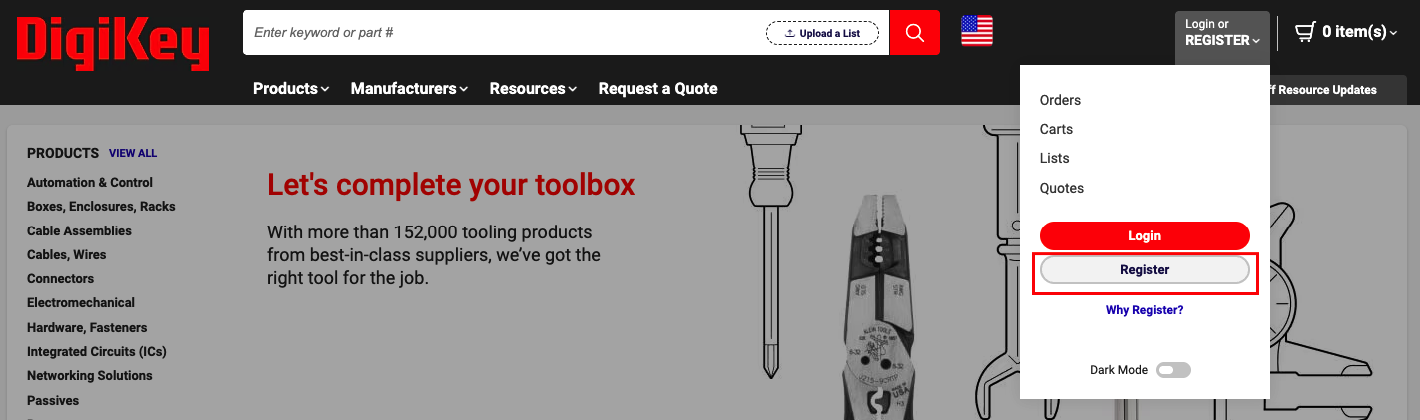

1. Create Account at digikey.com
2. Email Supplyframe Customer Support team (support@supplyframe.com) to obtain Client ID and Secret via secure email:
-
- Email subject - Supplier Connect DigiKey Setup Request
- Email body - Include your company name, confirm that you have created a DigiKey account already and request a Client ID and Client Secret
Part II: Create Supplier connection in Supplyframe
- Login to Supplyframe.
- Go to System Settings -> Supplier Connect.
- Click on Add Connection.

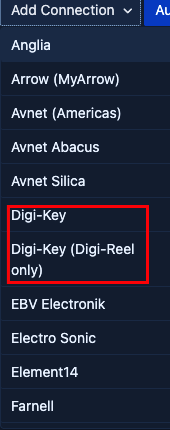

- Select Digi-Key or Digi-Key Digi-Reel from dropdown list.

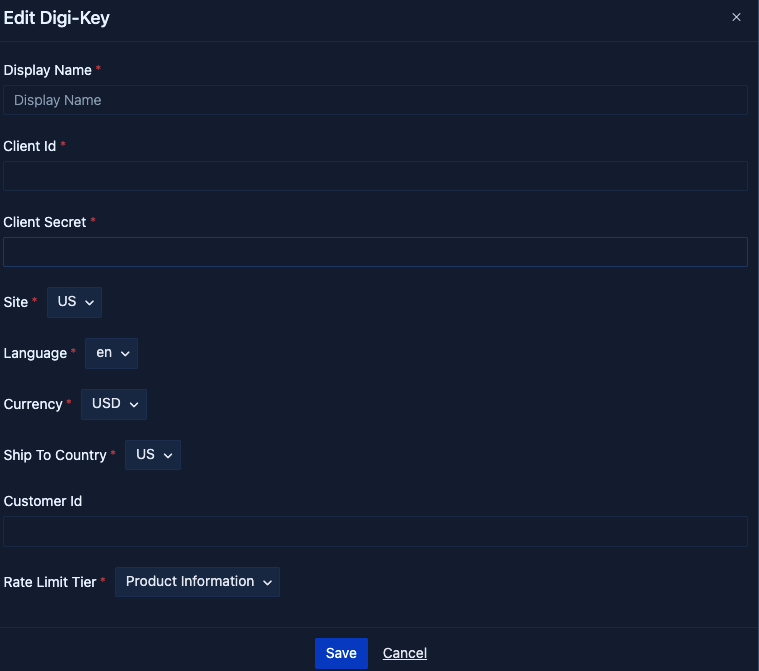

- Fill in Name, Provided Client ID, Provided Client Secret, Site, Language, Currency, Ship to Country, and Customer Id fields

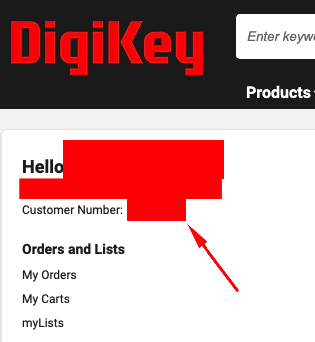

Tip: Customer ID can be found in your DigiKey account that was crated on the website (this is required if you want to get customer specific pricing)
Important - Setting the Rate Limit Tier:
If you haven't previously negotiated a Rate Limit directly with your DigiKey representative, please set the Rate Limit Tier to the "Product Information" setting.
If you have a specific rate limit that has been negotiated with DigiKey, select the appropriate setting instead using the drop down:
Choose the option "Product Information" if you do not know which option is assigned to you by DigiKey.
- Click Save

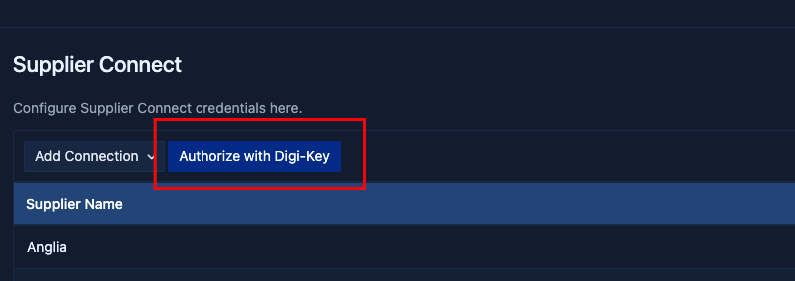

- Click Authorize with DigiKey button

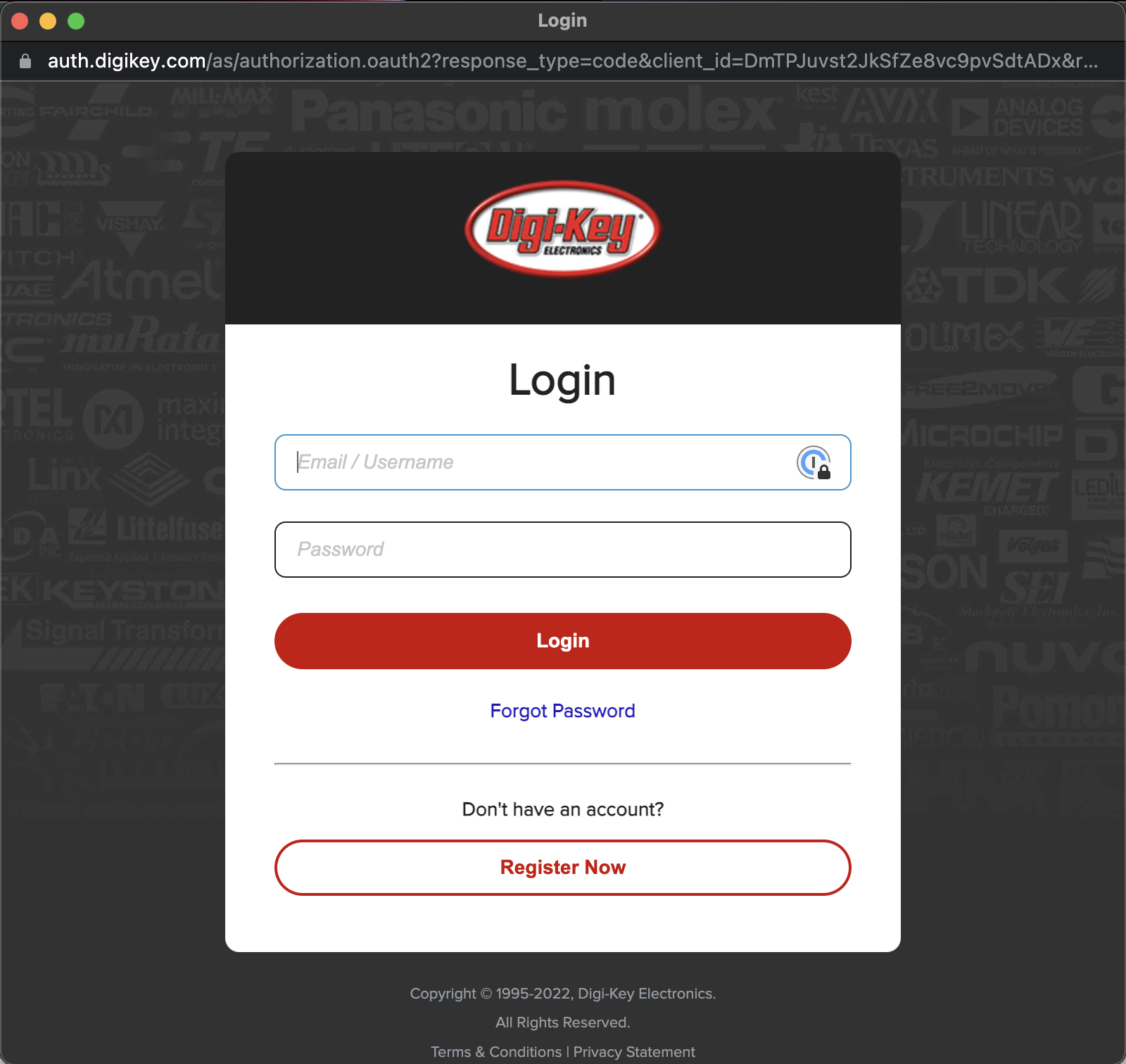

- Proceed with your DigiKey website login/authorization
- Input your DigiKey account credentials (in pop-up window)
--------------------------------------------------------------------------------------------
This supplier may use rate limits/quotas to control the number of MPNs that are requested through the supplier's API endpoint. Please discuss with your supplier contact and determine if your company's rate limits/quotas are sufficient enough to manage your demand.
