The RFQ filter of "Not Awarded Group" will display any lines not awarded based on its IPN/CPN, Plant and Subcontractor group. A line item belonging to the same group would have the same IPN/CPN, Plant and subcontractor. If any of the values are different then that line would be considered to have a separate group.

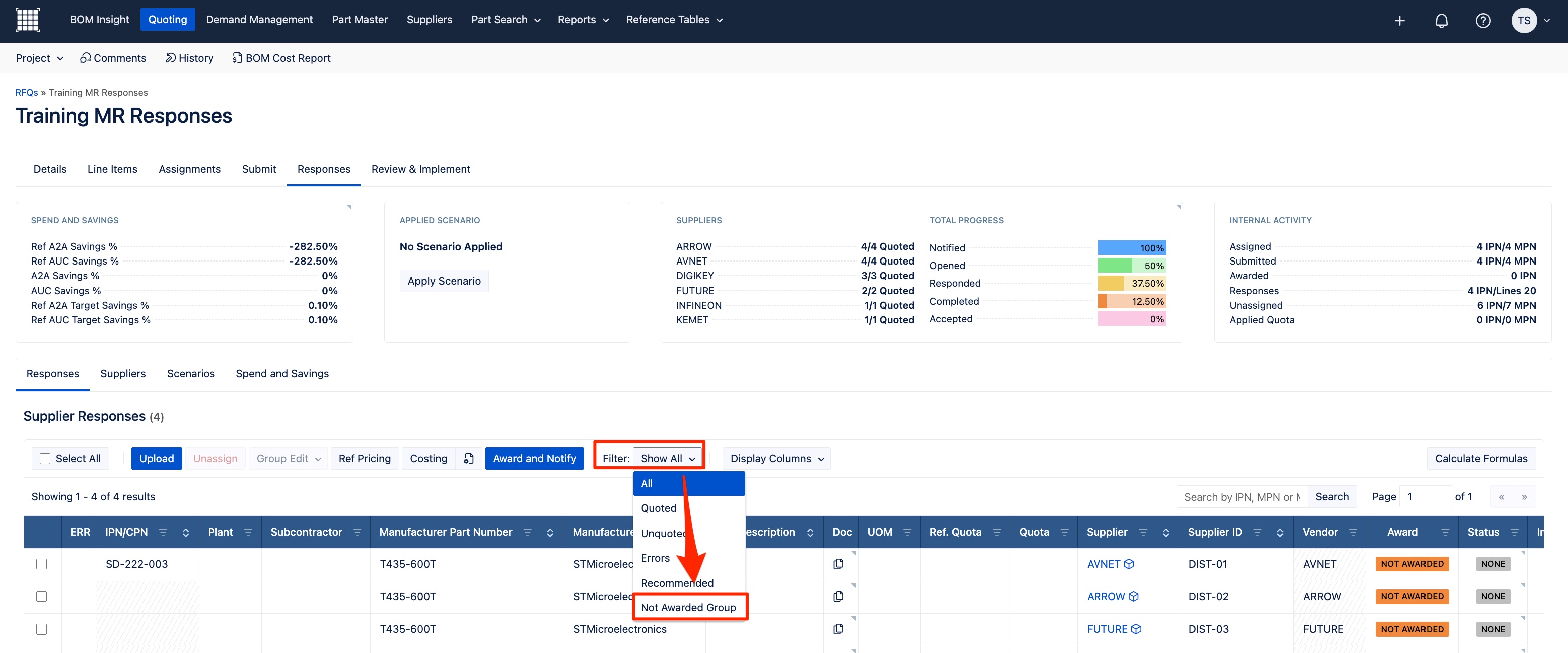

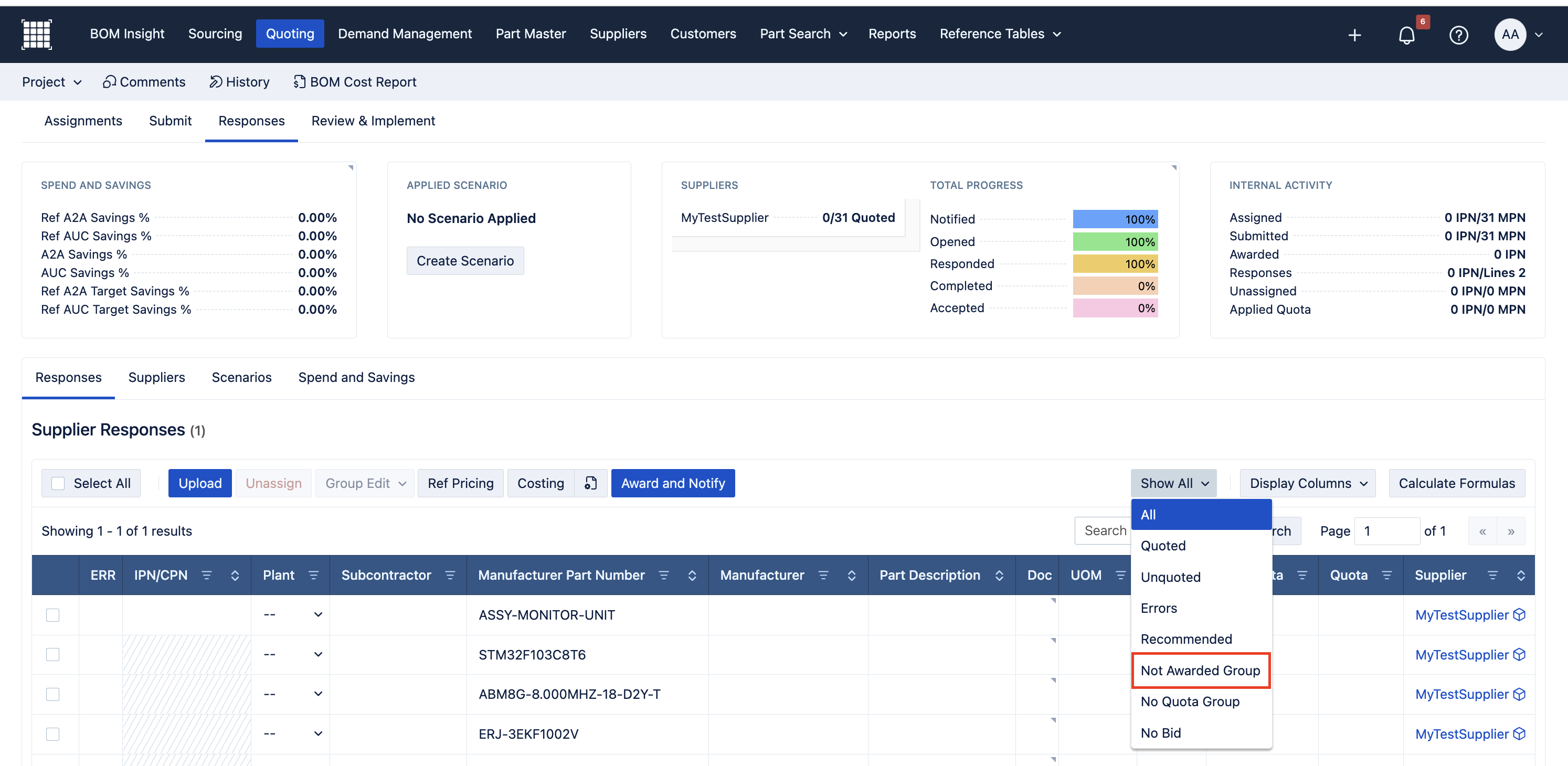

To to view these lines within your quote, click on Filter dropdown and then on Not Awarded Group.
When a line item has the same IPN, Plant and Subcontractor for a group, yet one of the lines in that group is not awarded, then it is still considered as awarded per the group. Therefore, the unawarded lines will not appear in the ”Not Awarded Group” filter when in they're in an awarded grouping.
Whereas if the line item has the same IPN, but different a Plant or Subcontractor, then the lines are considered to have separate groups. If any of the lines are not awarded, then that line will appear in the ”Not Awarded Group” filter.

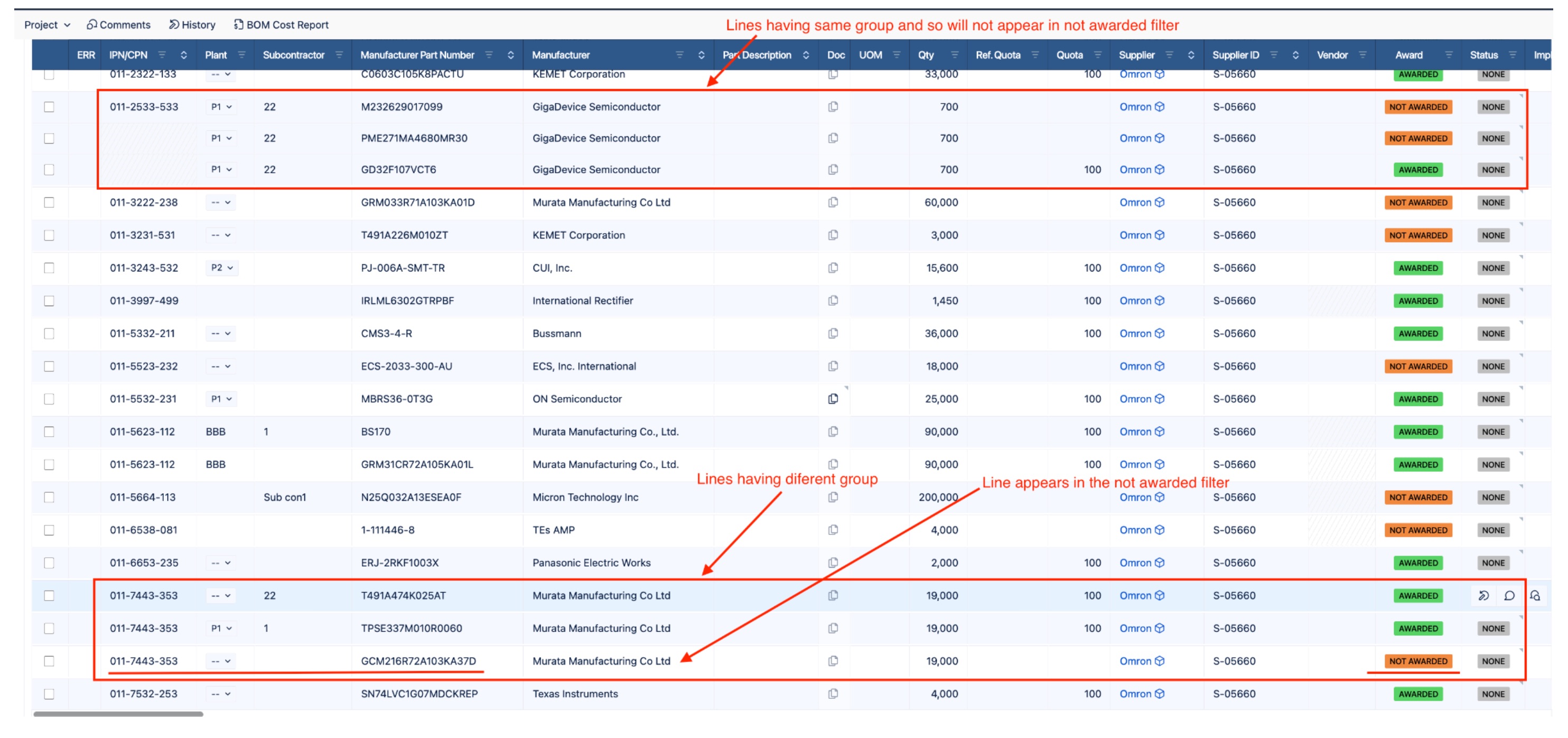

In below screenshot, IPN 011-2533-533, has three lines with the same IPN, Plant and Subcontractor. Only one of them is awarded, but since they belong to the same group, the other lines will not appear when the ”Not Awarded Group” filter is applied.

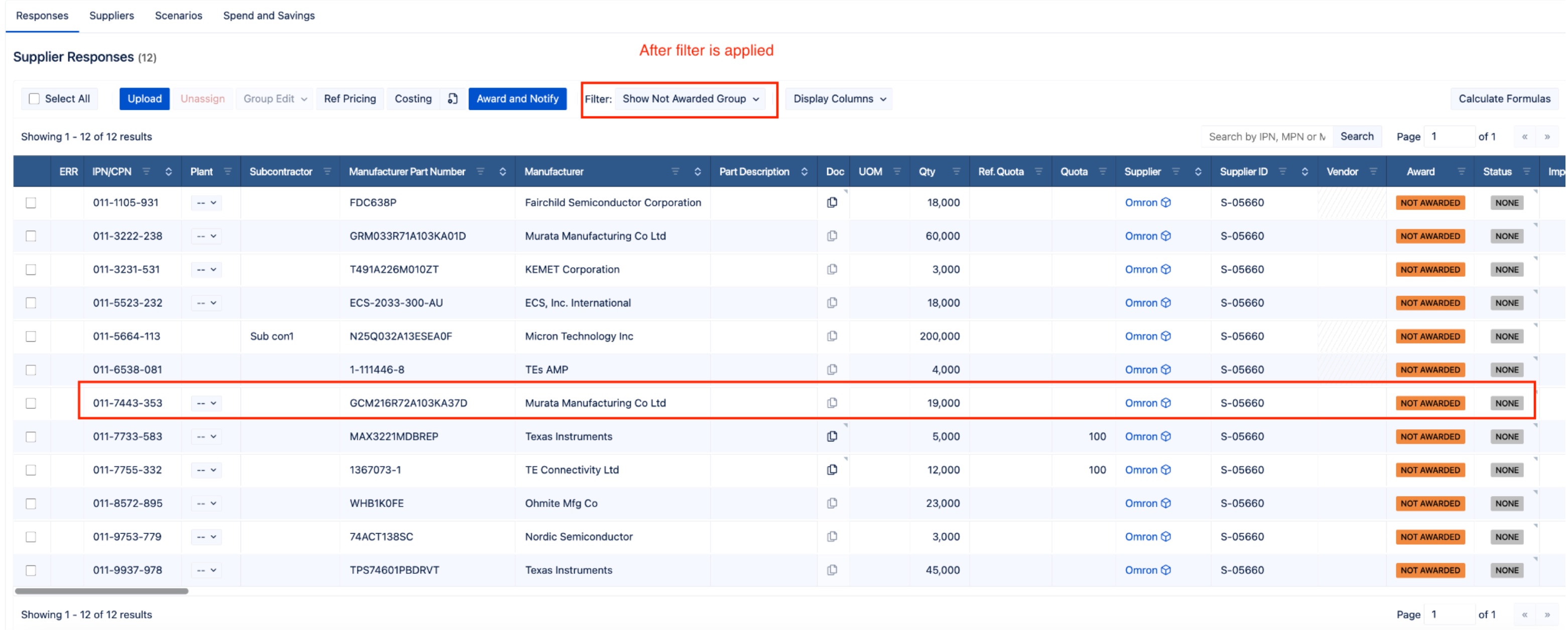

Whereas IPN 011-7443-353, has three lines, but each line has different Plant and Subcontractor, so they are considered to be separate groups. Since the line with MPN GCM216R72A103KA37D is not awarded, this line will appear in ”Not Awarded Group” filter.
